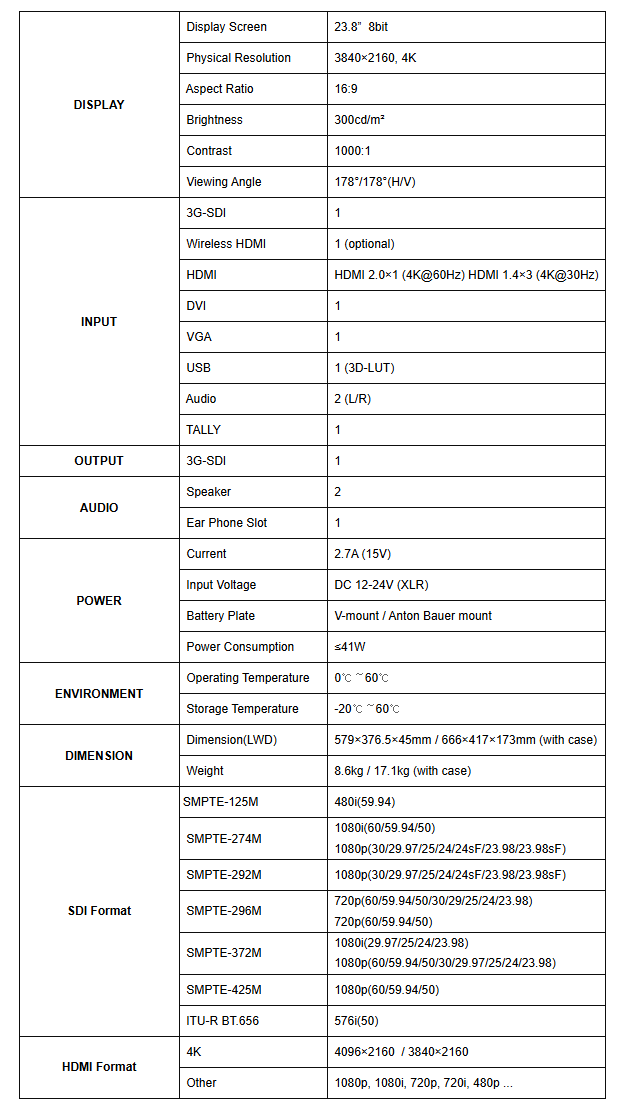

Display | |
Size | 23.8” |
Resolution | 3840×2160 |
Brightness | 330cd/m² |
Aspect ratio | 16:9 |
Contrast | 1000:1 |
Viewing Angle | 178°/178°(H/V) |
HDR | HDR 10 （under HDMI model） |
Supported Log formats | Sony SLog / SLog2 / SLog3… |
Look up table (LUT) support | 3D LUT (.cube format) |
Technology | Calibration to Rec.709 with optional calibration unit |
Video Input | |
SDI | 1×3G |
HDMI | 1×HDMI 2.0, 3xHDMI 1.4 |
DVI | 1 |
VGA | 1 |
Video Loop Output | |
SDI | 1×3G |
Supported In / Out Formats | |
SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60 |
HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
Audio In/Out (48kHz PCM Audio) | |
SDI | 12ch 48kHz 24-bit |
HDMI | 2ch 24-bit |
Ear Jack | 3.5mm |
Built-in Speakers | 2 |
Power | |
Operating power | ≤61.5W |
DC In | DC 12-24V |
Compatible batteries | V-Lock or Anton Bauer Mount |
Input voltage (battery) | 14.4V nominal |
Environment | |
Operating Temperature | 0℃~50℃ |
Storage Temperature | -20℃~60℃ |
Other | |
Dimension(LWD) | 579×376.5×45mm / 666×417×173mm (with case) |
Weight | 8.6kg / 17kg (with case) |
